FlashShield Fitting Assembly

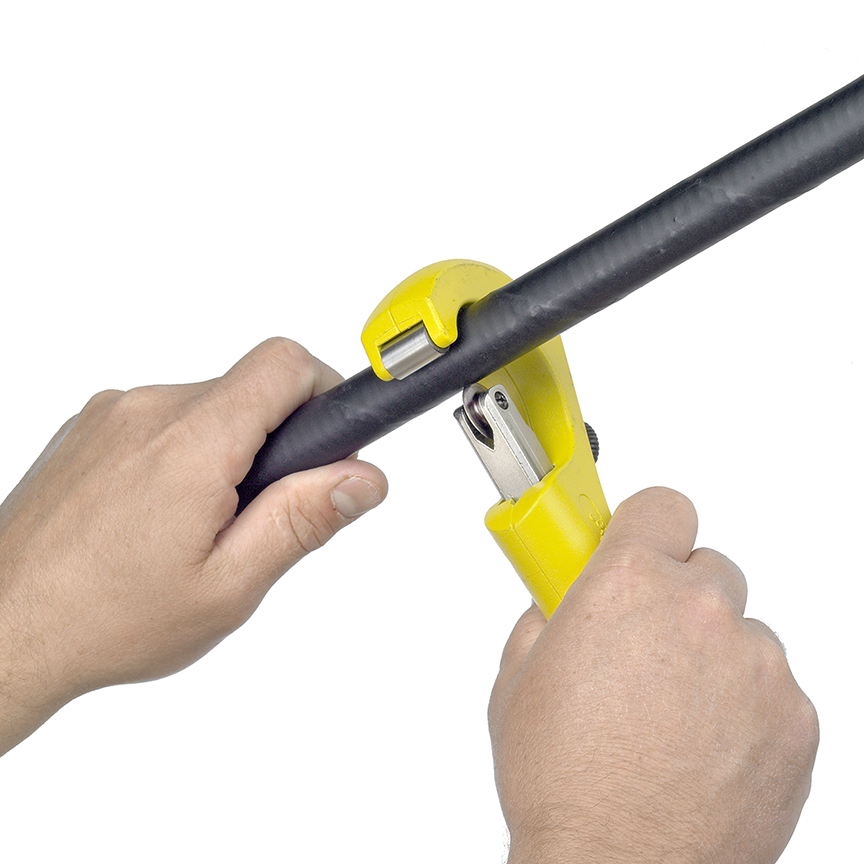

  • Process 1Step 1: Cut the CSST using a Gastite tubing cutter or equivalent.

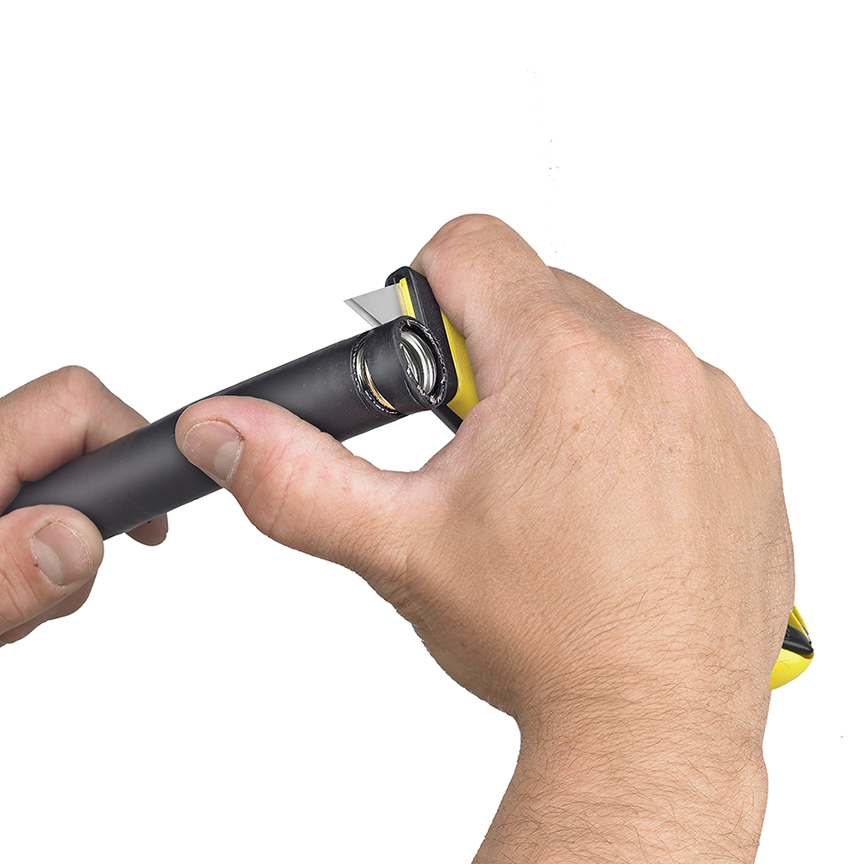

  • Process 2Step 2: Cut the jacket in the valley of the second corrugation.

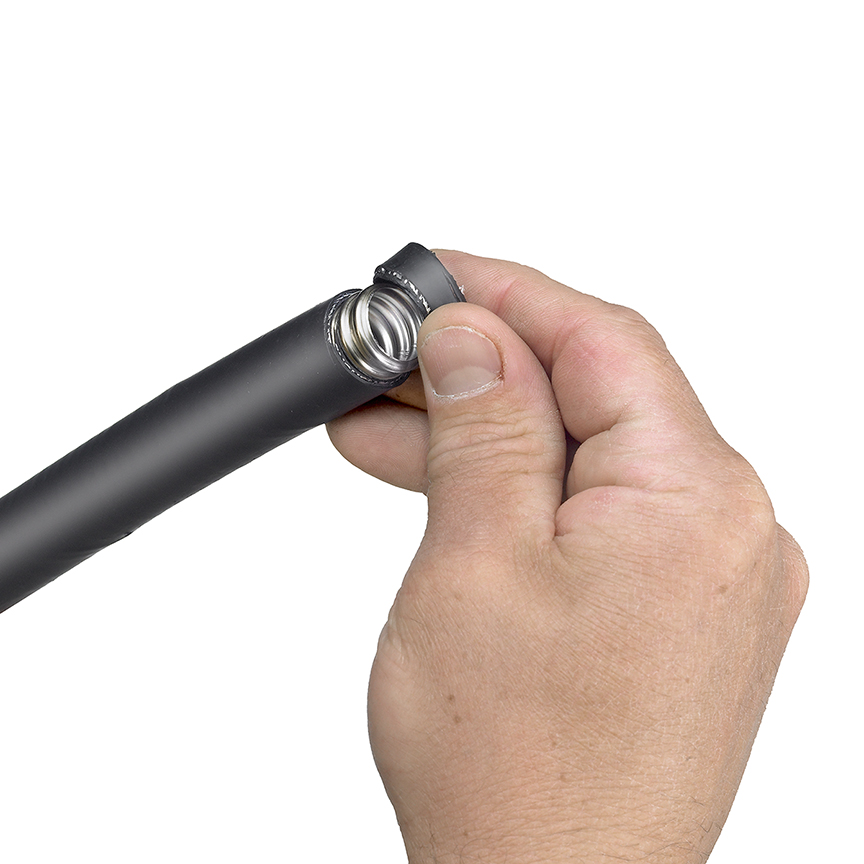

  • Process 3Step 3: Remove the section of the trimmed jacket by hand.

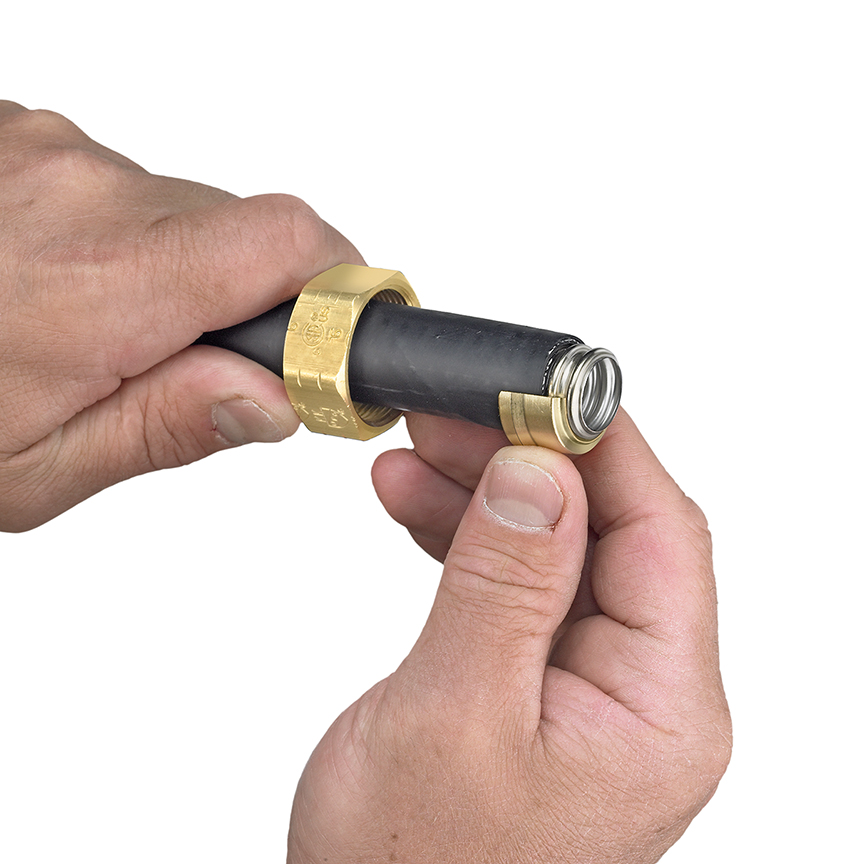

  • Process 4Step 4: Install nut and bushings. Bushings will bite into jacket.

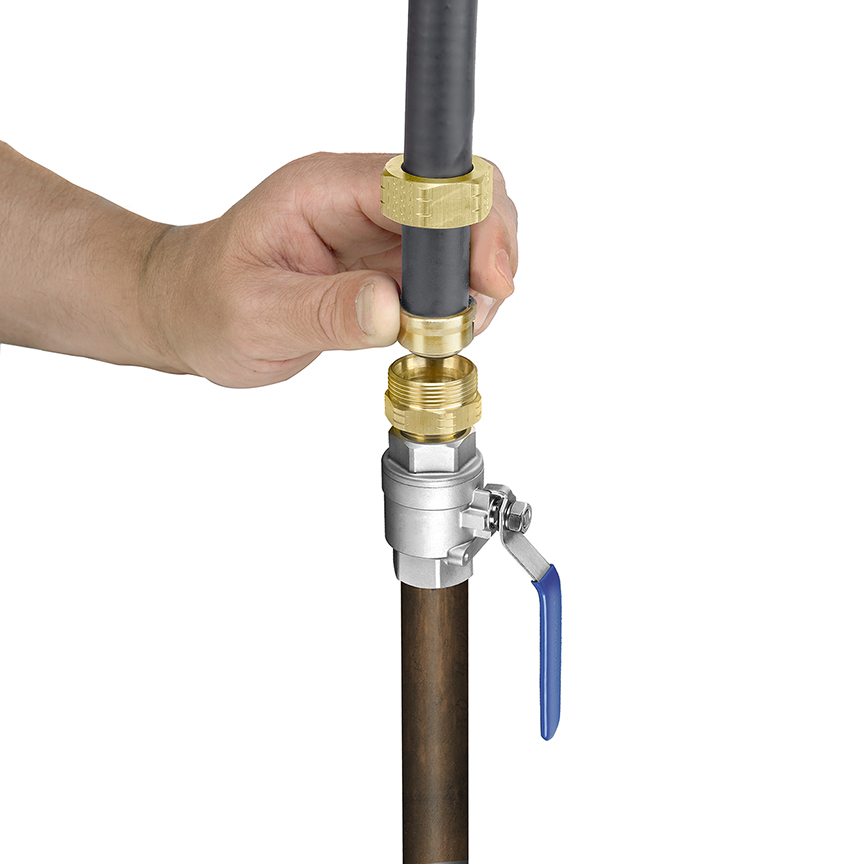

  • Process 5Step 5: Insert into adapter. Squeeze bushings together to insert.

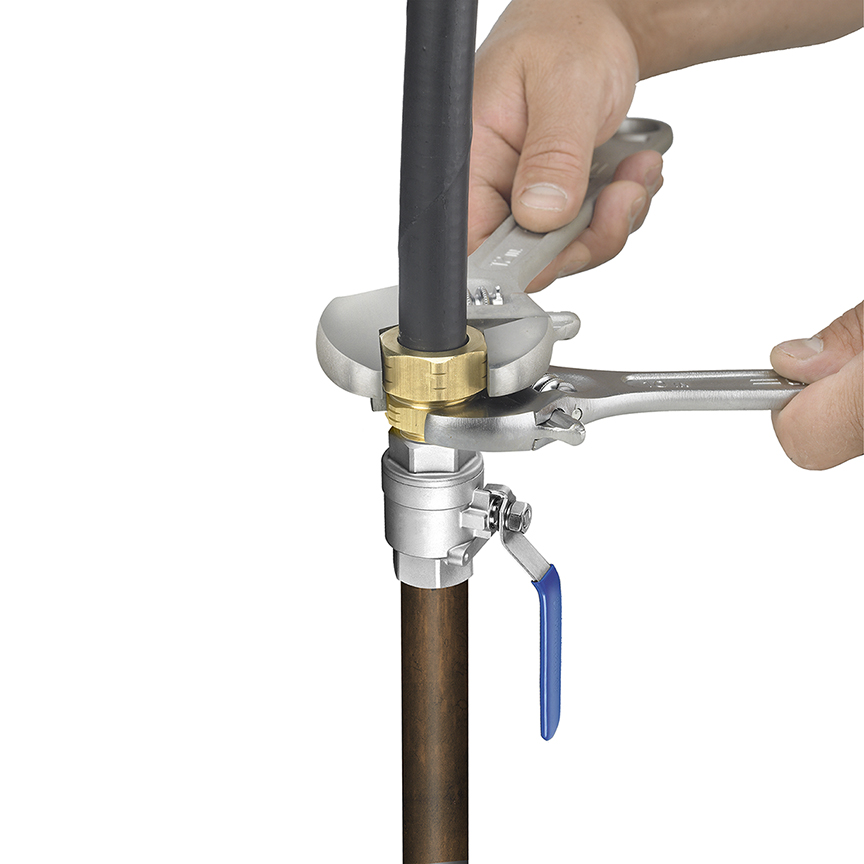

  • Process 6Step 6: Tighten with wrenches, turning nut only.
