XR3 Fitting Assembly Using Jacket Stripping Tool

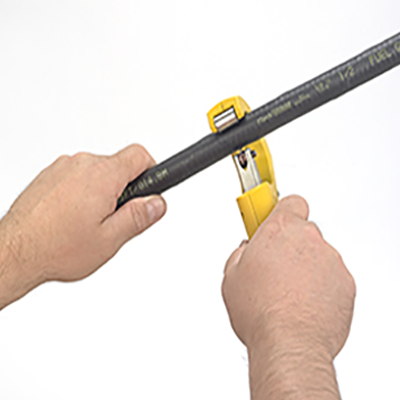

  • Process 1Step 1: Cut the CSST using a tubing cutter.

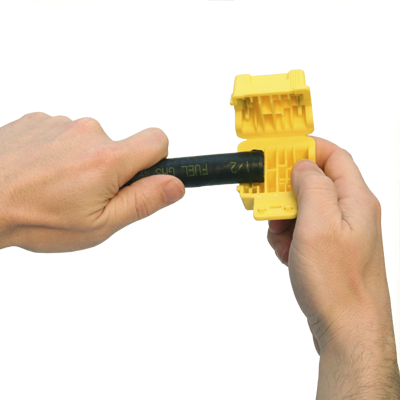

  • Process 2Step 2: First Cut - Place cut end of CSST into side 1 of the stripping tool to the tube stop.

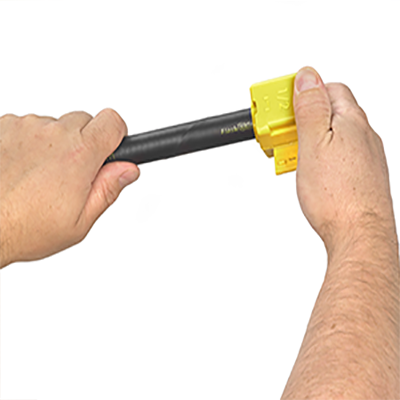

  • Process 3Close tool & rotate.
  • Process 3Step 3: Remove 3 jacket layers by pulling tool straight away from CSST.

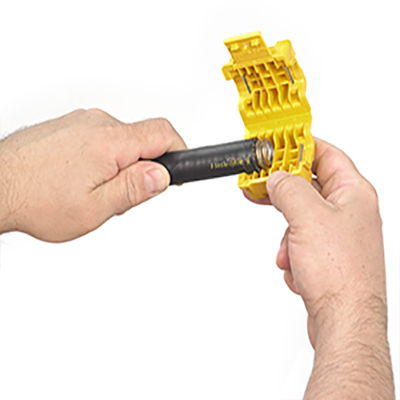

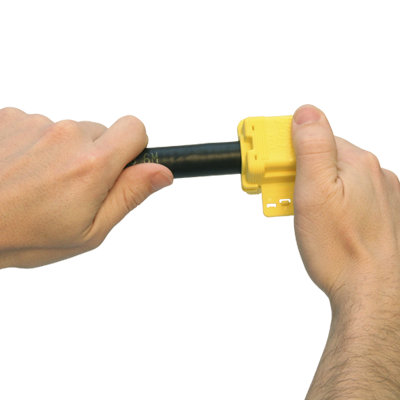

  • Process 3Step 4: Second Cut - Turn stripping tool to side 2. Insert stripped CSST to tube stop.
  • Process 4Close tool & rotate.

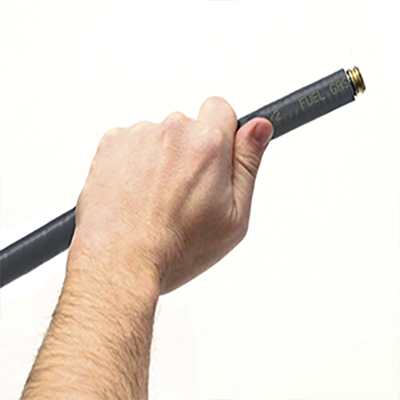

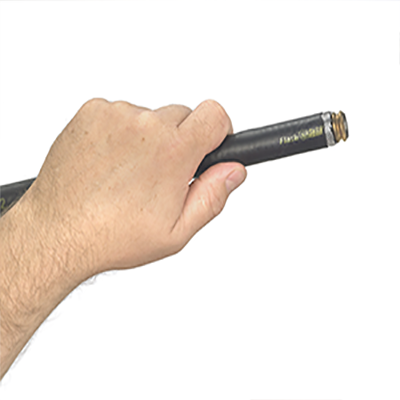

  • Process 5Step 5: Remove outer jacket by pulling tool straight away from CSST.

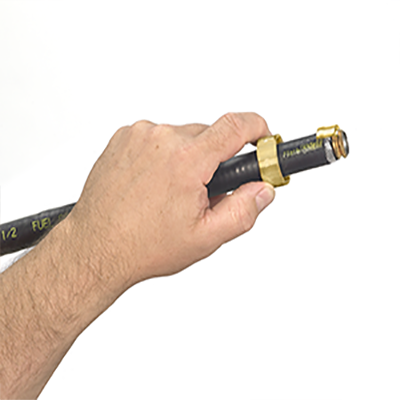

  • Process 6Step 6: Install nut and bushings

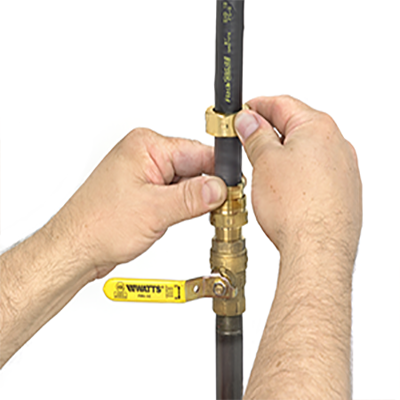

  • Process 6Step 7: Squeeze bushings together to insert into fitting body.

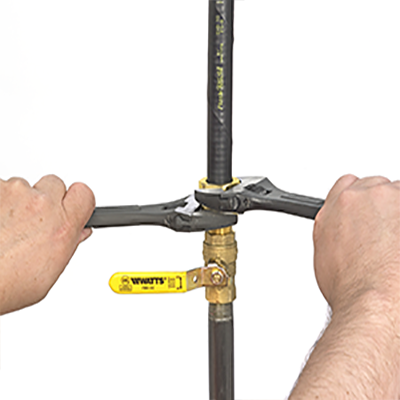

  • Process 6Step 8: Wrench fitting tightening the nut only.
