Quick Connects & Accessories
Application
Quick-Connect valve and accessories provide a safe and easy “quick-connect” for barbecue grills, space heaters and decorative lighting.
Ball Valves are used to control gas flow to appliances and pounds-to-inches regulator.
Materials / Specification
- Quick Connect and Accessories – ANSI Z21.15, CAN 9.1,9.2, 6.9 and AGA/CGA 7-90/CR94-001.
- Ball Valve – ANSI/ASME B16.33.
Features & Benefits
- Quick Connects provide a safe and easy quick-connect for barbeque grills, space heaters and
decorative lighting. - Ball Valves provide ability to shut off individual run for maintenance without shutting down complete systems. Clean appearance. CSA certified.
Quick Connects & Accessories
Quick Connect and Accessories
| Part No. | Description | Pkg. Qty. | Lb./Box |
|---|---|---|---|
| OUTFLEX-3/8 | Outdoor Flex Connector - 3/8" NPT x 10' | 1 Ea. | 2.4 |
| QCBOXPG | 1/2" Quick Connect Box Grey PVC - Surface Mounted | 1 Ea. | 1.6 |
| QCBOXPW | 1/2" Quick Connect Box White PVC - Surface Mounted | 1 Ea. | 1.6 |
| QCBOXSS | 1/2" Quick Connect Box Stainless Steel - Recessed Mounted | 1 Ea. | 2.3 |

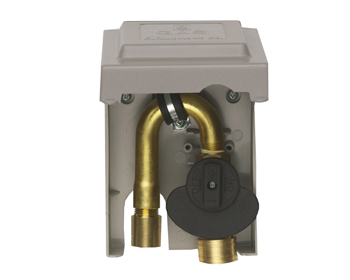

| T103029 | 1/2" Quick Connect Valve | 1 Ea. | 1.0 |
Shut-Off Valves
| Part No. | Description | Pkg. Qty. | Lb./Box |
|---|---|---|---|

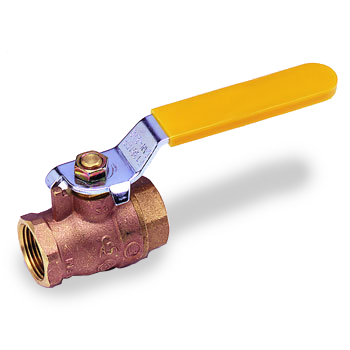

| T100-1-1/4-5 | 1-1/4" Ball Valve rated to 125 psi | 5/Box | 11.0 |
| T100-1/2-20 | 1/2" Ball Valve rated to 125 psi | 20/Box | 10.0 |
| T100-3/4-10 | 3/4" Ball Valve rated to 125 psi | 10/Box | 8.0 |
| T90-1/2-10 | 1/2˝ 90 Degree Shut-Off Valve | 10/Box | 4.6 |
| T90-3/4-10 | 3/4" 90 Degree Shut-Off Valve 10/Box | 10/Box | 7.7 |
