Manifolds
Application
Manifolds provide central distribution point for individual runs to each appliance.
Materials / Specification
- Coated 4 Port – Welded IPS Schedule 40 pipe.
- Cast 3, 4, and 5 Port – ASTM A47 32510 Malleable Iron.
Features & Benefits
- Ability to shut off individual runs for maintenance
Manifolds

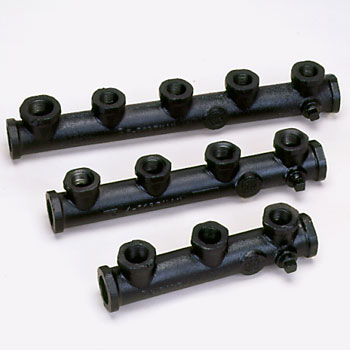

Multi-Port Manifolds
| Part No. | Description | Pkg. Qty. | Lb./Box |
|---|---|---|---|
| 3-PORTMAN-1 | Cast 3 port - 1/2" x 3 @ 1/2"F x 1/2"F | 1 ea. | 1.5 |
| 4-PORTMAN-M | Cast 4 port - 3/4"F x 4@ 1/2”F x 3/4”M | 1 Ea. | 2.3 |
| 4-PORTMAN-2 | Cast 4 port - 1-1/2"F x 4 @ 3/4"F x 1-1/2"F | 1 Ea. | 7.2 |
| 4-PORTMAN-3 | Cast 4 port - 2"F x 4 @ 1"F x 1-1/2"F | 1 Ea. | 8.6 |
| 5-PORTMAN-2 | Cast 5 port - 1-1/4"F x 5 @ 3/4"F x 1"F | 1 Ea. | 6.7 |
| 5-PORTMAN-3 | Cast 5 port - 1-1/4"F x 5 @ 1/2"F x 1"F | 1 Ea. | 5.7 |
